Main features
Special designed for advertising industry More options can be chosen to upgrade the machine Increasing the processing efficiency sharply Mass customized demands canbe met
Application
Evgraving the characters or patterns in kinds of materials
Cutting the materials for individual demands
Processing sports equipment, such as surf board
Processing materials for indoor and outdoor decoration
Technical parameters
TECHNICAL DATA

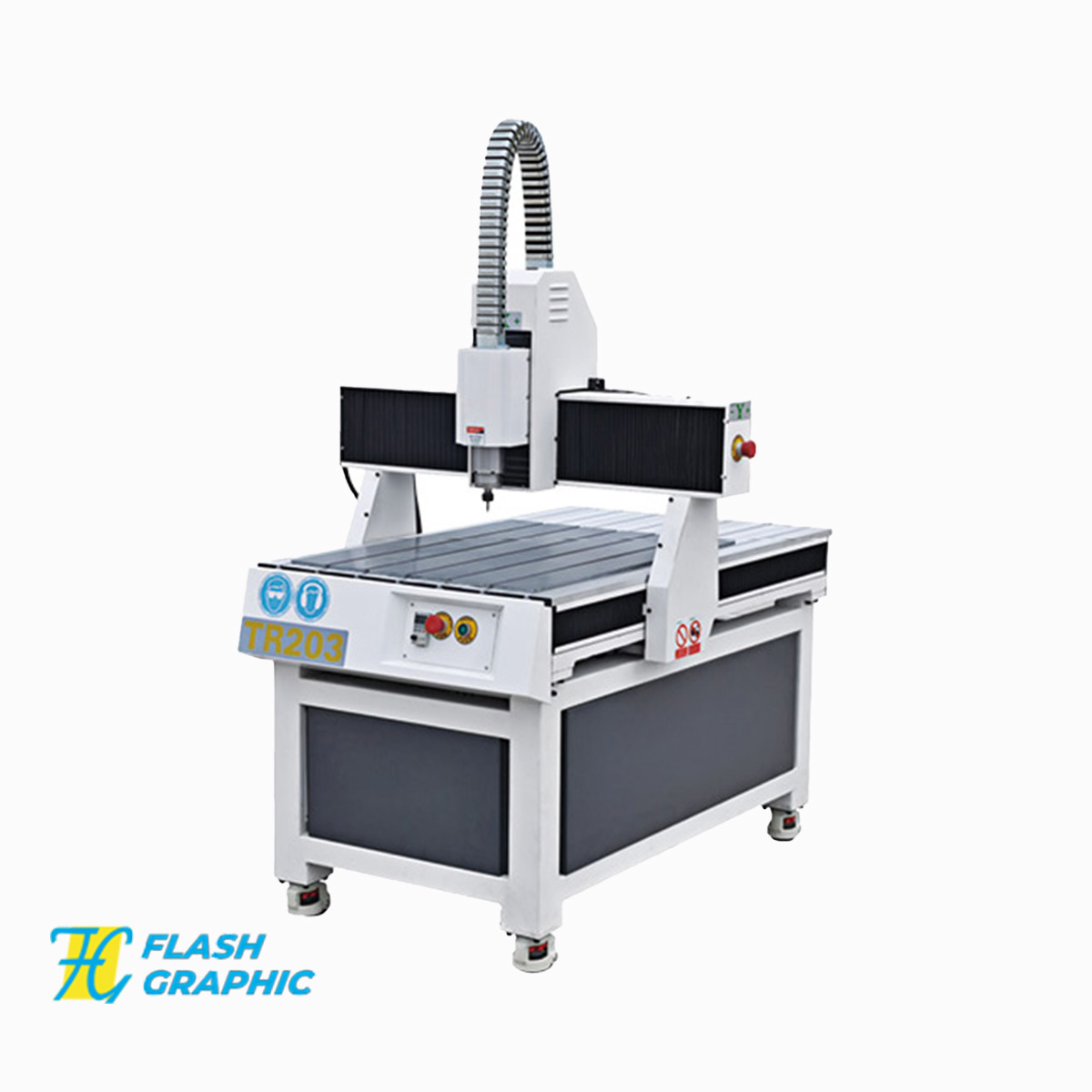

CNC ROUTER TR203-1

Floor space

1200x1500x1050mm

Working field

600x900x150mm

Work table dimensions

710x1100mm

Max depht of cut

20mm

Width of feeding belt

40mm

Travelling speed

45m/min

Working speed

18m/min

Operating system

NK105 G2

Machine structure

Cast steel, table type

Structure X Y Z

Ball screw and linear guides

Spindle power motor

1.5KW Italy HSD air cooling spindle

Working mode

Stepper

Spindle rotation

0-24000rpm

Command mode

G Code

Interface

USB

Memory

128MB(or flash drive)

Machine accuracy

±0.05mm/m

Software

Type3, Ucancam, Vectric, Asprie

Working surface height from floor

830mm.

Weight

350kgs

Shipping dimensions

1430x1230x930mm
